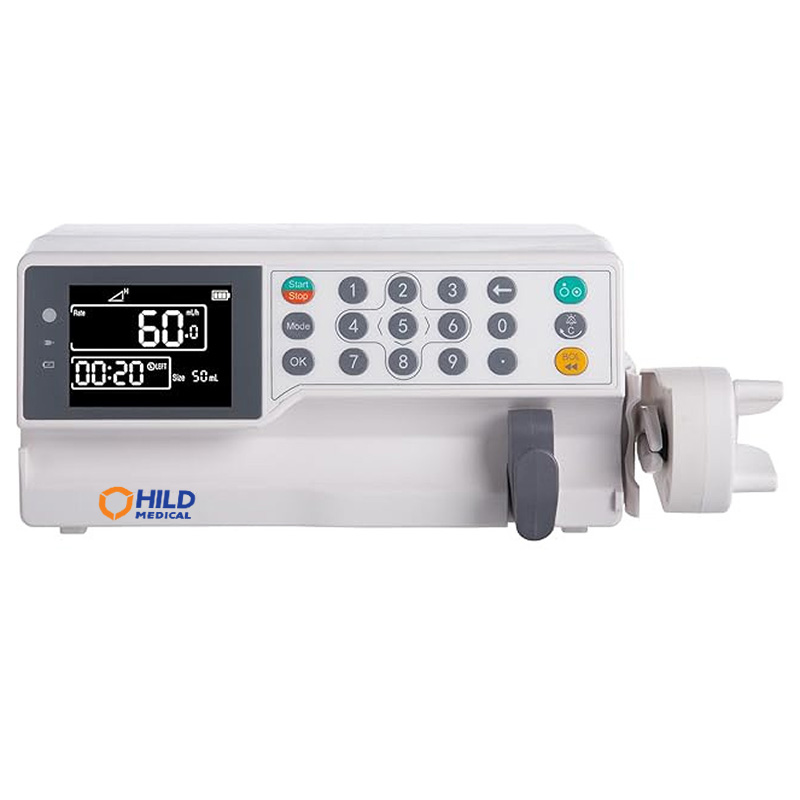

Hild Medicals EGL SP Syringe Pump gives you precise and controlled drug delivery in emergency treatment, surgery, and patient observation. Its portability and small size guarantee effortless handling, while the simple interface with physical keys guarantees instant manipulation.
A better safety feature consists of a 2.8-inch LCD display and audible and text alerts. The use of multiple injection modes facilitates user-definable settings, and automatic power switching ensures seamless operation. Suitable for use with standard disposable syringes, it provides infusion precision. Password protection prevents unauthorized modification, allowing for safe and reliable operation in any medical setting.
- Compatible with 2 ml, 5 ml, 10 ml, 20 ml, 30 ml, and 50/60 ml syringes.
- Infusion volume: 0.1 ~ 9999.9 ml (Step by 0.1 ml).
- Infusion rate depends on syringe size, up to 1800 ml/h for 50/60 ml.
- Accuracy: ±2%.
- Pre-set flow rates up to 800 ml/h for large syringes.
- KVO rate: 3 ml/h (≥10 ml/h), 1 ml/h (1-10 ml/h), or flow rate (<1 ml/h).
- Automatic battery, syringe error, occlusion, and power failure alarms.
- VTBI completion, pause overtime, and malfunction alerts.
- Dual pressure settings: High (100 kpa) and Low (50 kpa).
- Guarantees accurate, safe, and continuous infusion for patients.
| Syringe Size | 2 ml, 5 ml, 10 ml, 20 ml, 30 ml, 50/60 ml |
| Volume Infused | 0.1~9999.9 ml, Step by 0.1 ml |
| Flow Rate |
2ml: 0.1-100ml/h;
5ml: 0.1-150ml/h;
10ml: 0.1-400ml/h;
20ml: 0.1-600ml/h;
30ml: 0.1-1000ml/h;
50/60ml: 0.1-1800ml/h;
|
| Accuracy | ±2% |
| Bolus Rate |
2 ml Syringe: 100 ml/h;
5 ml Syringe: 150 ml/h;
10 ml Syringe: 400 ml/h;
20 ml Syringe: 600 ml/h;
30 ml Syringe: 800 ml/h;
50/60 ml Syringe: 800 ml/h
|
| KVO Rate |
Flow rate ≥10ml/h: KVO rate 3 ml/h
Flow rate ≥1ml/h and <10ml/h: KVO rate 1 ml/h
Flow rate <1ml/h: KVO rate = Flow rate
|
| Alarm |
Battery exhausted alarm, Low battery alarm, Near end alarm,
VTBI finished alarm, Incorrect syringe handle installation alarm,
Syringe size error, Plunger error, Pause overtime alarm,
Occlusion alarm, Malfunction alarm, A.C. and D.C. Off
|
| Occlusion Pressure | Two levels: High, Low
H: 100 kpa; L: 50 kpa |
| Power | A.C. 100-240V 50/60Hz, Input D.C. 15V/2A Output,
Input Voltage to Device |
| Power and Battery | 55VA Max; Battery Voltage 10.8V; Support 6 Hours normal operation |
| Classification | Class II, Type CF, IPX2 |
| Dimension | 278x145x106mm (W x D x H):1.5kg |
