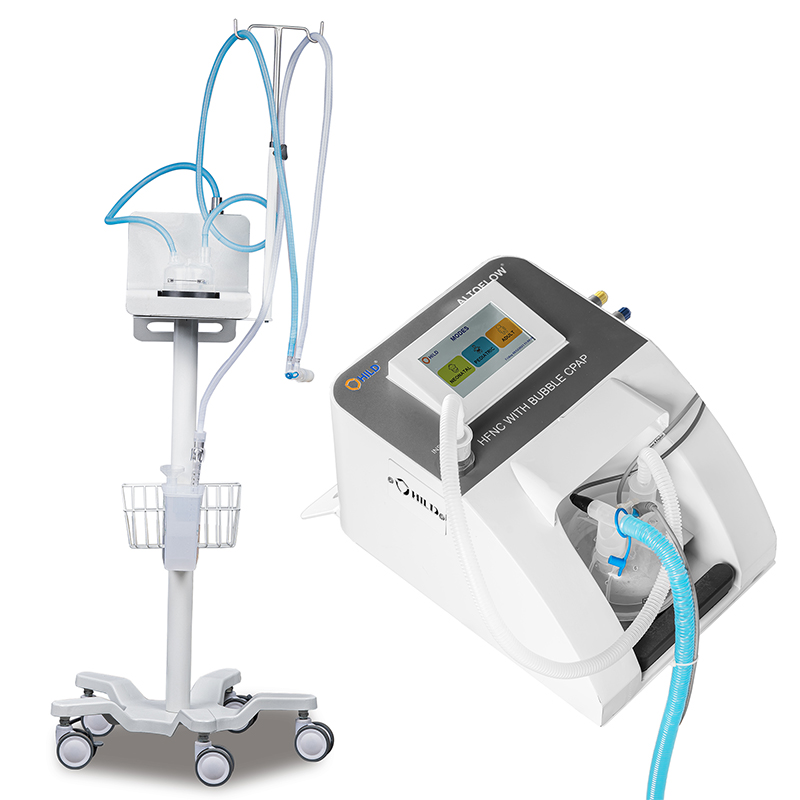

HFNC WITH BUBBLE CPAP ALTO FLOW®
The ALTO FLOW® is advanced micro-controller based lightweight, high performance HFNC with Bubble CPAP system that is designed to provide the maximum functionality in the smallest possible package.
Function
- High performance ventilation in a comfortable package.
- No external compressed air source.
- Built in Turbine Technology.
- Flow rate, Humidifier Temperature, Fio2 can be controlled.
- User friendly Colour Touch Screen Display.
- Real-time monitoring of flow, oxygen percentage and temperature display.
- Pre-set to facilitate rapid patient set-up.
- Infusion parameters can be saved after power off.
Specifications
| Dimensions | 380mm x 255mm x 250mm (14.96"x 10" x 9.84") |
|---|---|
| Weight | 5 Kg (11.02 lb)unit only, 6.2 Kg (13.66 lb) packaged in box incl. accessories |
| Screen Size | 4.3", 480"272 resolution |
| Supply Frequency | 50-60 Hz |
| Supply Voltage/Current | 100-240V 2.1A |
| Type of Patient Supported | Neonatal/Adult / Pediatric |
| Therapy Type | Non-Invasive |
| Patient Interface | Nasal Prongs/Mask |
| CPAP Volume | 1-10 cmH2O with increment of 1 cm In-built |
| Air Oxygen Blender | In-built |
| Oxygen Sensor | In-built(Type: Electrochemical) |
| Flow Range | 0-70 L/min |
| FiO2 with Tolerance | 21% to 100% (+/-2%) |
| Humidifier Temp Range | 25°C-43°C |
| Airway Temp Range | 25°C-43°C |
| Humidifier | Heated wire servo controlled humidifier |
| Water Chamber | Disposable or Reusable |
| Heated Wire Tubing Circuit | Disposable or Reusable Silicon |
| Pressure Release Valve | 15-17 cmH20 |
| Bubble CPAP Generator Support | 1-10Cm |
| PEEP Valve Support | Optional |
| Trolley | Optional |
| Alarm | O2 Low, Power Failure, Optional High Pressure |
| Nebulizer | Optional |
